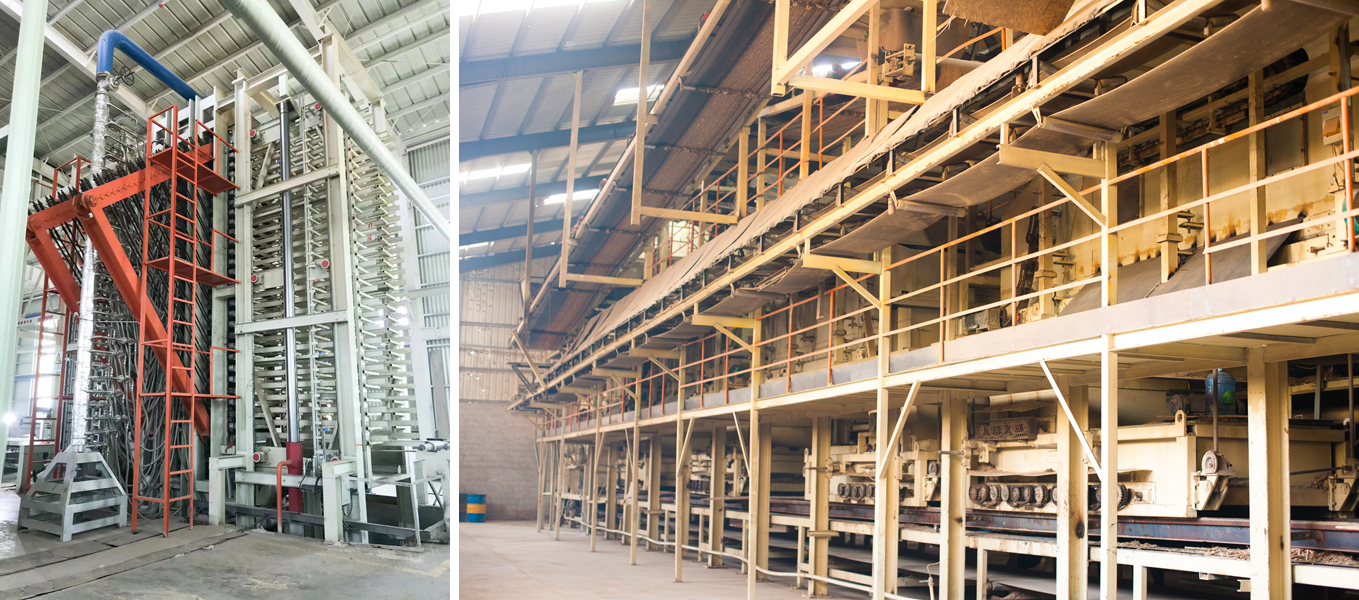

| Product name: | OSB production line | |
| Working methods: | Automatic CNC | |
| Board size: | 4*8 | |
| Working thickness: | 9mm-18mm | |
| Working time: | 24hours | |
| Application: | OSB for packing , wall paneling , decoration | |
| Project | Production capacity | Automatic degree |
| Particle board production line | 10000-15000 cbm/ year | Semi-Auto & Full automatic |

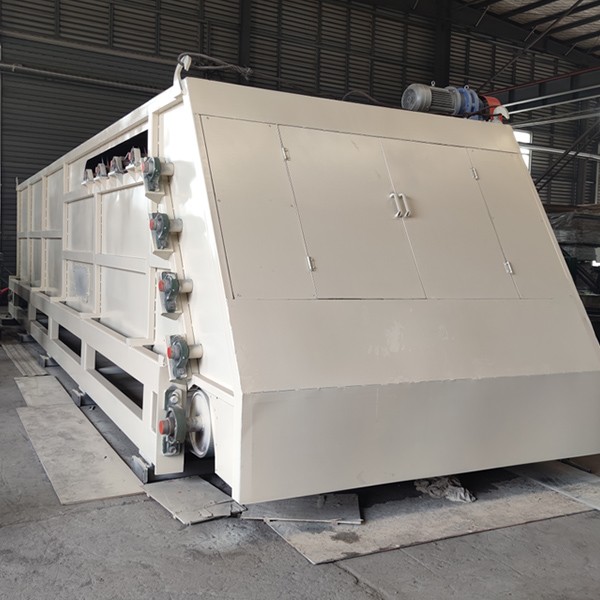

Debarker machine is used to peel off the bark of logs, which is of no use in OSB production as it provides no structural strength. Properly debarked logs then will be sent to the heavy duty OSB strand rotary cutting machine to make qualified strands for subsequent drying process.
Process dimension | 600X1400 mm |
Roller diameter | Φ150mm |
Rotating Speed | 50m/min |
Power | Double roller 11kw*2 |
Single roller7.5kw*2 | |
Hydraulic system 7.5kw | |
Blade dimension | 2700*180*16mm |
Overall size | 4600x2000x1800mm |
Weight | 6000kgs |

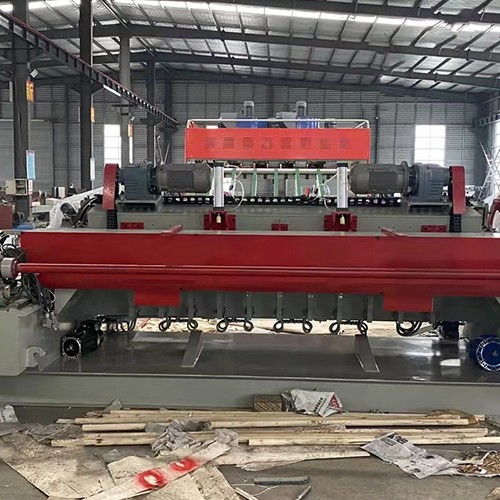

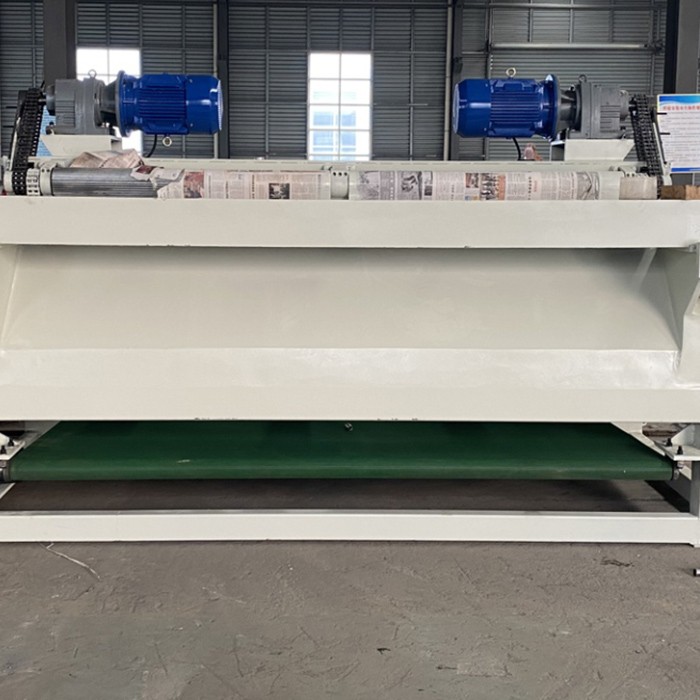

The OSB strand rotary cutting machine will process debarked logs into qualified OSB strands directly. A typical model for OSB production line of 100,000 CBM production capacity is recommended. The parameters of YQVP2600X are shown in the table below.
Model | YQVP2600X |
Working length | 2700mm |
Max diameter | Φ500mm |
Working thickness | 0.3-3.6mm |
Speed | 60-100m/min |
Guide screw | Φ90mm |
Roller diameter | Φ125mm |
Double roller motor | 15kw*2 |
Single roller motor | 11kw*2 |
Feeding motor | 15kw |
Clipper motor | 3.7kw |
Roll motor | 2.2kw |
Conveyor motor | 0.75kw |
Total power | 57.2kw 220V 50Hz |
Weight | 11000kgs |
Overall size | 5000*2200*1600mm |
Knife size | 2700*180*16mm |
Clipper knife size | 2700*140*12.7mm |
Model | BX218 | BX218D |
Dimension(L×W×H) | 4670×2150×1500mm | 4670×2150×1500mm |
Rotor diameter | 80mm | 80mm |
Number of rotor knives | 2 | 2 |
Feed opening | 225×680mm | 240×750mm |
Processed max diameter | 160mm | 160mm |
Chip length | 30/20mm | 30mm |
Production Capacity | 15-20m³/h | 38 m³/h |
Main motor power | 110kw | 132kw |
Feed roller motor power | 4×2kw | 4×2kw |
Pump motor power | 0.55kw | 0.55kw |
Machine net weight | 7000kg | 7500kg |

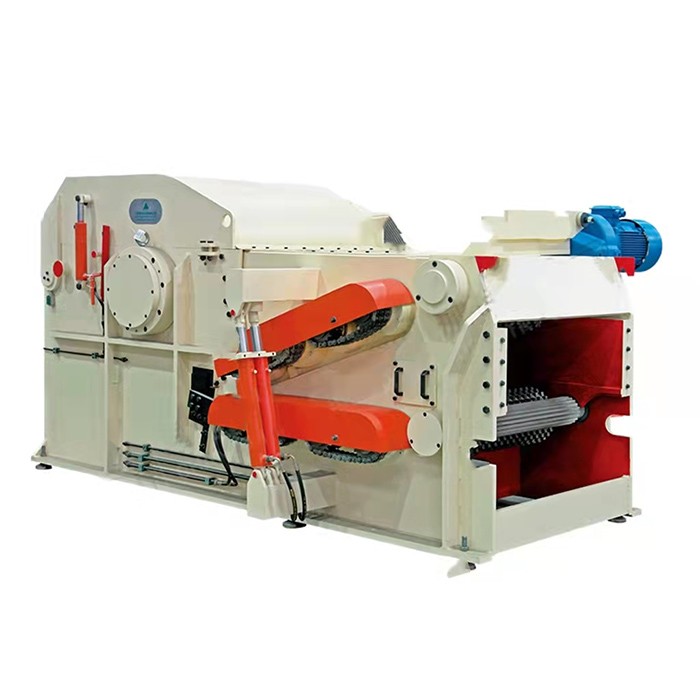

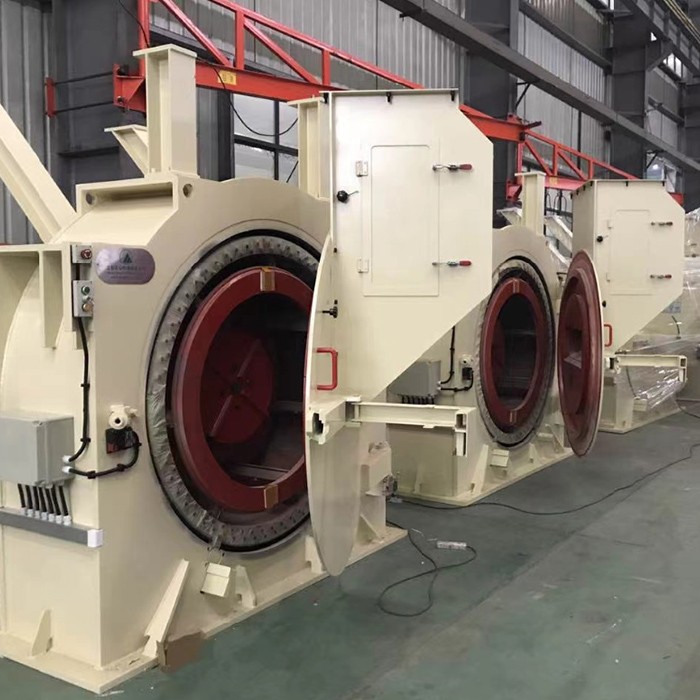

Knife ring flaker consists of the base, knife roller, impeller, oscillation infeed, magnetic separation, heavy objects separation，hydraulic system, braking system and electric control system. It’s one of the main equipments for the particle preparation section.
Main Parameters | BX468 | BX4612 |
Knife ring diameter（mm） | 800 | 1200 |
No.of knives（pieces） | 28 | 42 |
Length of knife（mm） | 300 | 375 |
Partile thickness（mm） | 0.4－0.7 | 0.4－0.7 |
Knife ring rotating speed（r/min） | 50 | 50 |
Impeller rotating speed（r/min） | 1450 | 935 |
Production capacity（Kg/h） | 1500－2000 | 3000 |
Power of main motor（Kw） | 132 | 200 |
Weight（Kg） | 6363 | 8500 |
Dimension（L×W×H）（mm） | 3130×2512×2380 | 3443×2753×2840 |

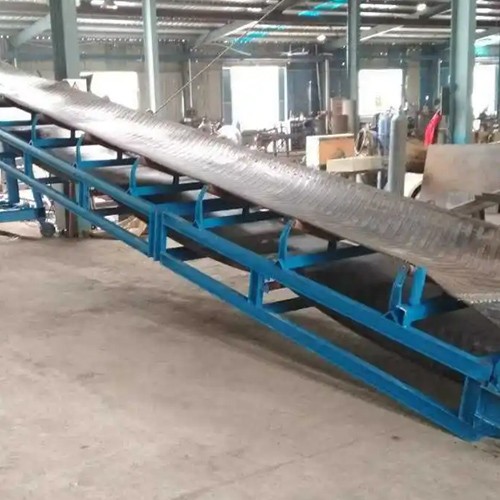

Belt conveyors are used in multiple occasions in the whole production line, to transfer materials (chips, strands, glued strands etc) from one section to another.
Model | BY10 |
Width (mm) | 1000 |
Length (mm) | 10000 |
Motor Power (KW） | 5.5KW |
Capacity (Tons/Hour) | 10 |
Weight (Kgs) | 500 |

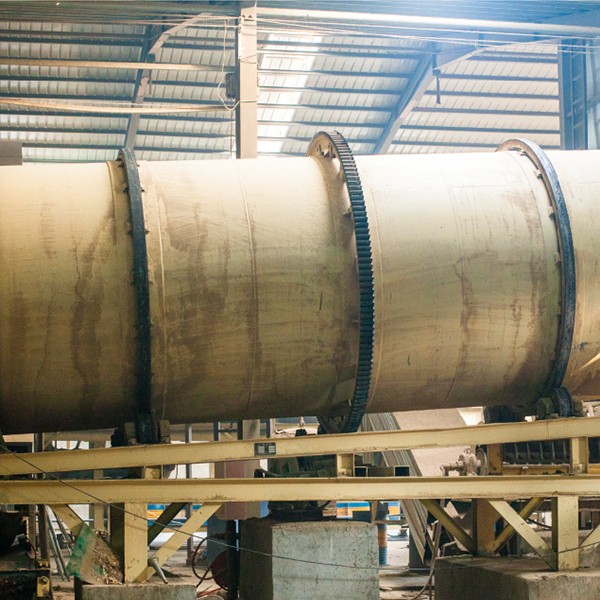

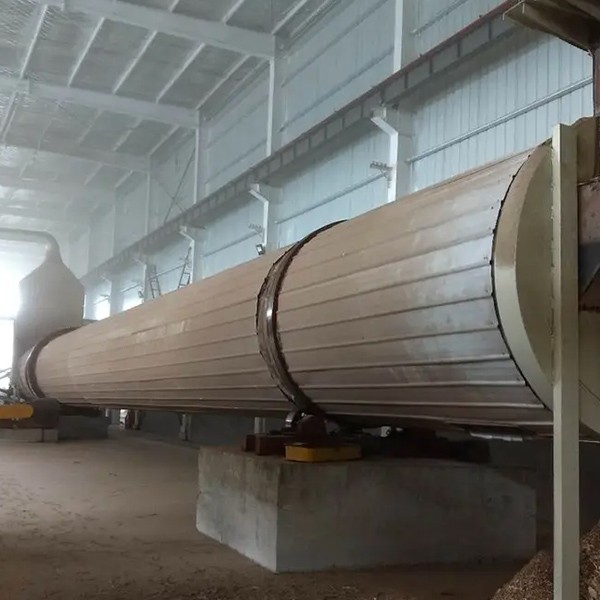

Single passage rotary dryer, drying medium mostly hot steam or smoke. Moisture content after drying will be 2%~4% which are required for OSB production.

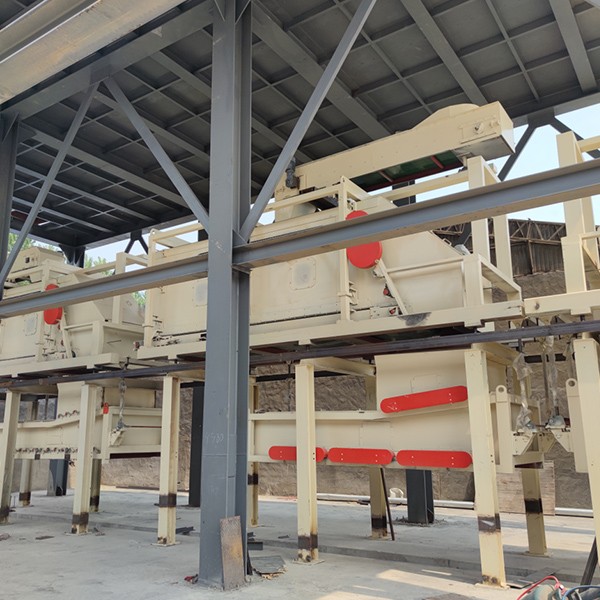

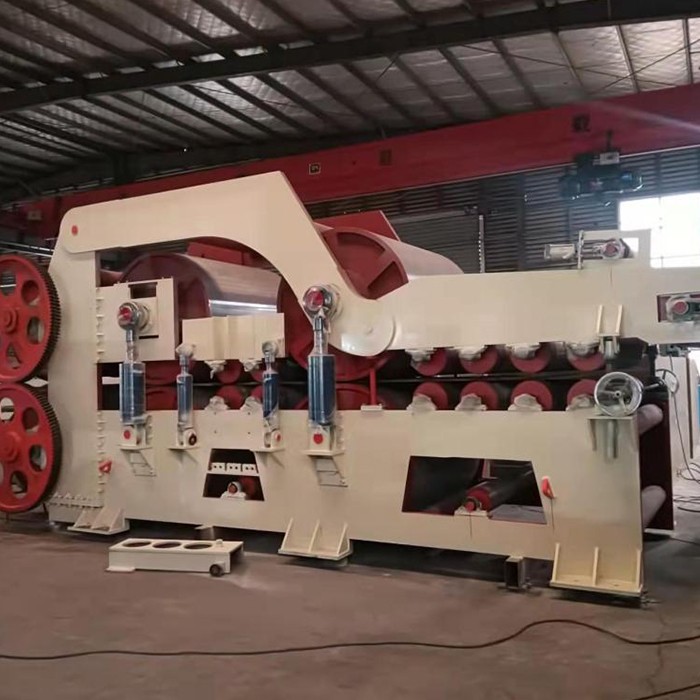

Dimension (Dia.× Length) | Ø300×30000 |
Capacity (Tons/Hour) | 5~10 |
Initial moisture content | 50%～60% |
Final moisture content | ≤3% |
Roller rotate speed | 3~10R/Min |
Drive motor power | 22KW |
Blower power | 355 KW |
Overall dimension ( Dia.× Length, mm) | Ø2600×7000 |
Motor Power (KW) | 11 |
Rotating speed (R/Min) | 3~10 |
Capacity (Tons/Hour) | 5~10 |
Weight(Tons) | 25~30 |
Overall dimension (L*W*H,mm) | 8000*2000*2200 |
Motor Power (KW) | 22 |
Capacity (M3) | 30M3 ~ 50M3 |
Model | OSF41 |
Forming width | 1350mm |
Forming head | 4 |
Forming speed | 9-16m/min |
Weight(Tons) | 25~30 |
Forming structure | surface and core cross-direction |
Forming style (surface) | oriented disc forming |
Forming style (core) | oriented beam forming |
Total Power | 60 kw |
Model | LY1400 |
Overall Dimensions | 9000x3500x2300mm |
Roller Diameter | 1400mm |
Operating Pressure | 10MPa |
Line Pressure | 200N/cm |
Power | 45KW |

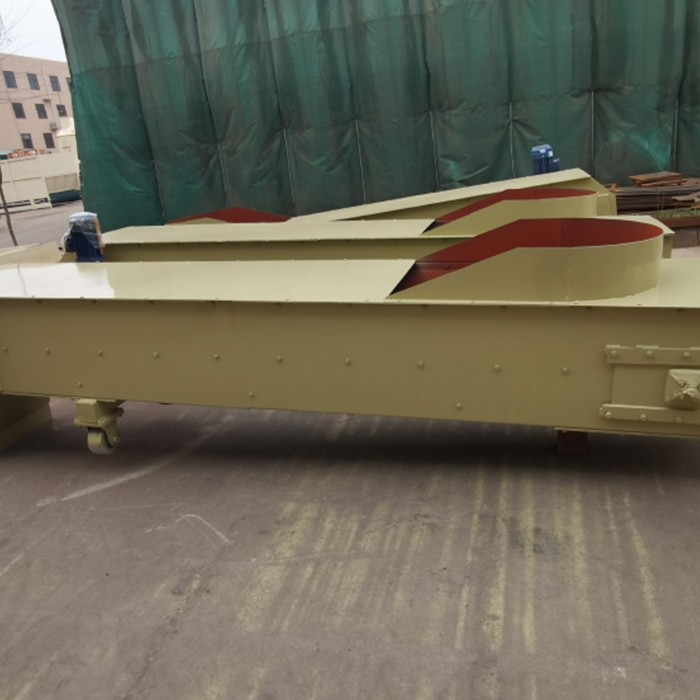

The components that convey glued strands into separate forming wet bins. Swinging belt will evenly distribute strands into separate wet bins for subsequen forming. Usually four swinging belts are needed for an OSB production line.

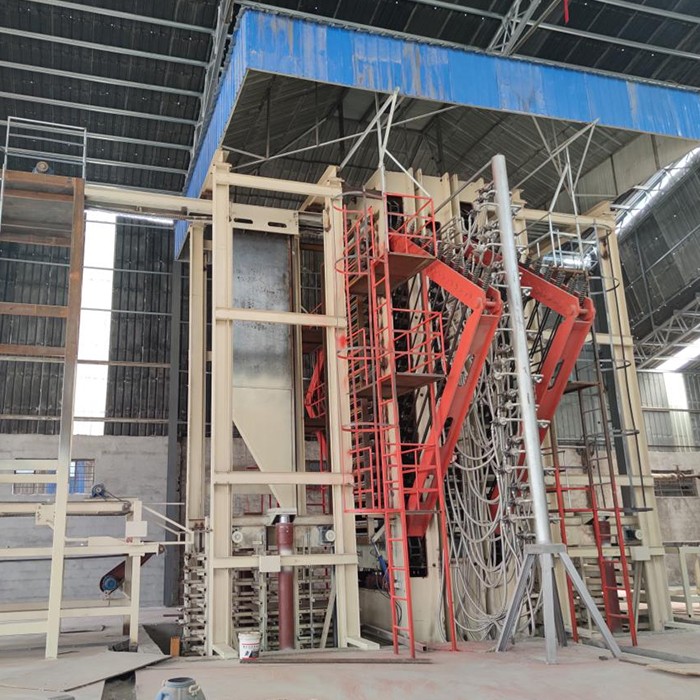

Model | BP80 |
Overall Dimensions(mm) | 3000x1000x400 |
Belt width (mm) | 800 |
Power | 12 KW |
Overall dimension | 4300*4000*2000mm |
Opennings | 12~32 |
Work voltage | 220V/380V |
Total power (KW) | 148KW |
Production size | 4*8feet (1220*2440mm) |
Production thickness | 8mm~30mm |
Platen dimension | 2600mm*1560mm*120mm |
Platen opening | 120mm |
No. and Dia. of cylinders | 8*320mm |
Cylinder stroke | 1800mm |
Pressing time | 200~240 Seconds |
Pressing temperature | 180~220 degree celcius |
Heating medium | heat transfer oil / steam |
Pressure supply | Hydaulic pressure supply station |
Supporting euqipments | loading cage, unloading cage, board pushers, hydraulic pressure station, nitrogen storage can. |
